给E3815小主机装Debian

  • by

装系统过程可谓波澜不惊,板载EMMC是4G,足够塞下Debian Headless,安装过程也比较顺利(除了慢了点之外,安装了5个小时.).

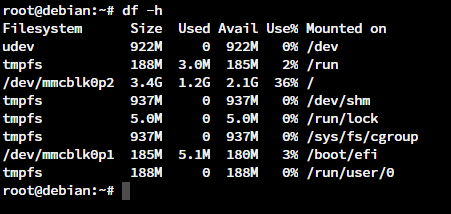

识别结果是/dev/mmcblk0,只安装SSH和基本系统后占用1.2G,EFS分区给了200M,大概还剩余2.1G可用.

连续读写大概36MB/s,随机读写大概1200IOPS,但是系统还是很卡,挂载的一个SATA硬盘识别出来是SATA 1.5Gbps,速度基本跑满,网络千兆只识别百兆,无法输出声音,USB 2.0全部正常,USB3.0带宽只能跑到180MB/s左右,HDMI/VGA显示正常,内部USB排针也正常,interrupt took too long大概已经是出现某些瓶颈的特征了.

FIX UPDATE:需要安装firmware-linux-nonfree和firmware-realteak,否则各种卡死.

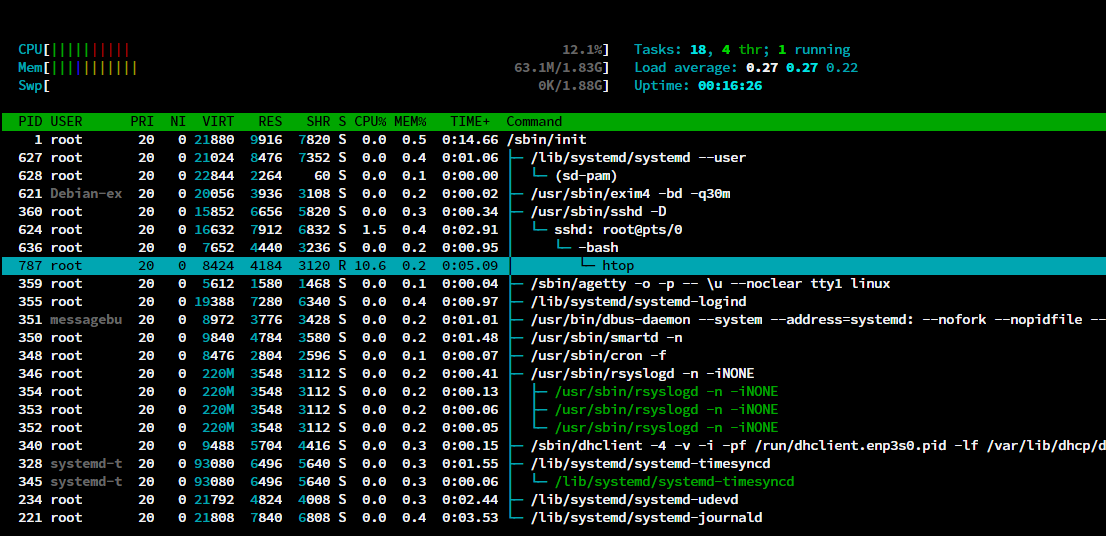

一个htop就能吃10%的CPU:

启动Log:

[    0.000000] Linux version 4.19.0-9-amd64 (debian-kernel@lists.debian.org) (gcc version 8.3.0 (Debian 8.3.0-6)) #1 SMP Debian 4.19.118-2 (2020-04-29)
[    0.000000] Command line: BOOT_IMAGE=/boot/vmlinuz-4.19.0-9-amd64 root=UUID=90444874-f3ab-46ea-b694-83a33d984cac ro quiet
[    0.000000] x86/fpu: x87 FPU will use FXSAVE
[    0.000000] BIOS-provided physical RAM map:
[    0.000000] BIOS-e820: [mem 0x0000000000000000-0x000000000008efff] usable
[    0.000000] BIOS-e820: [mem 0x000000000008f000-0x000000000008ffff] ACPI NVS
[    0.000000] BIOS-e820: [mem 0x0000000000090000-0x000000000009ffff] usable
[    0.000000] BIOS-e820: [mem 0x0000000000100000-0x000000001effffff] usable
[    0.000000] BIOS-e820: [mem 0x000000001f000000-0x00000000200fffff] reserved
[    0.000000] BIOS-e820: [mem 0x0000000020100000-0x000000007956dfff] usable
[    0.000000] BIOS-e820: [mem 0x000000007956e000-0x000000007959dfff] reserved
[    0.000000] BIOS-e820: [mem 0x000000007959e000-0x00000000795aefff] ACPI data
[    0.000000] BIOS-e820: [mem 0x00000000795af000-0x00000000796e0fff] ACPI NVS
[    0.000000] BIOS-e820: [mem 0x00000000796e1000-0x0000000079990fff] reserved
[    0.000000] BIOS-e820: [mem 0x0000000079991000-0x00000000799ecfff] type 20
[    0.000000] BIOS-e820: [mem 0x00000000799ed000-0x00000000799edfff] usable
[    0.000000] BIOS-e820: [mem 0x00000000799ee000-0x0000000079a2ffff] reserved
[    0.000000] BIOS-e820: [mem 0x0000000079a30000-0x0000000079ba5fff] usable
[    0.000000] BIOS-e820: [mem 0x0000000079ba6000-0x0000000079ff8fff] reserved
[    0.000000] BIOS-e820: [mem 0x0000000079ff9000-0x0000000079ffffff] usable
[    0.000000] BIOS-e820: [mem 0x00000000e0000000-0x00000000efffffff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000fec00000-0x00000000fec00fff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000fed01000-0x00000000fed01fff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000fed03000-0x00000000fed03fff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000fed08000-0x00000000fed08fff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000fed0c000-0x00000000fed0ffff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000fed1c000-0x00000000fed1cfff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000fee00000-0x00000000fee00fff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000fef00000-0x00000000feffffff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000ff990000-0x00000000ffffffff] reserved
[    0.000000] NX (Execute Disable) protection: active
[    0.000000] efi: EFI v2.31 by American Megatrends
[    0.000000] efi:  ACPI=0x795a1000  ACPI 2.0=0x795a1000  SMBIOS=0xf04d0  MPS=0xfd4e0
[    0.000000] secureboot: Secure boot could not be determined (mode 0)
[    0.000000] SMBIOS 2.8 present.
[    0.000000] DMI: \xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff \xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff/DE3815TYKH, BIOS TYBYT10H.86A.0024.2014.0523.1509 05/23/201
[    0.000000] tsc: Detected 1466.300 MHz processor
[    0.003664] e820: update [mem 0x00000000-0x00000fff] usable ==> reserved
[    0.003670] e820: remove [mem 0x000a0000-0x000fffff] usable
[    0.003692] last_pfn = 0x7a000 max_arch_pfn = 0x400000000
[    0.003699] MTRR default type: uncachable
[    0.003702] MTRR fixed ranges enabled:
[    0.003706]   00000-9FFFF write-back
[    0.003708]   A0000-BFFFF uncachable
[    0.003712]   C0000-E7FFF write-through
[    0.003714]   E8000-FFFFF write-protect
[    0.003717] MTRR variable ranges enabled:
[    0.003721]   0 base 000000000 mask F80000000 write-back
[    0.003724]   1 base 07A000000 mask FFE000000 uncachable
[    0.003728]   2 base 07C000000 mask FFC000000 uncachable
[    0.003730]   3 disabled
[    0.003732]   4 disabled
[    0.003734]   5 disabled
[    0.003736]   6 disabled
[    0.003737]   7 disabled
[    0.003925] x86/PAT: Configuration [0-7]: WB  WC  UC- UC  WB  WP  UC- WT
[    0.012332] found SMP MP-table at [mem 0x000fd6b0-0x000fd6bf]
[    0.012387] BRK [0x1ec01000, 0x1ec01fff] PGTABLE
[    0.012392] BRK [0x1ec02000, 0x1ec02fff] PGTABLE
[    0.012396] BRK [0x1ec03000, 0x1ec03fff] PGTABLE
[    0.012500] BRK [0x1ec04000, 0x1ec04fff] PGTABLE
[    0.012508] BRK [0x1ec05000, 0x1ec05fff] PGTABLE
[    0.012905] BRK [0x1ec06000, 0x1ec06fff] PGTABLE
[    0.013096] BRK [0x1ec07000, 0x1ec07fff] PGTABLE
[    0.013222] BRK [0x1ec08000, 0x1ec08fff] PGTABLE
[    0.013292] BRK [0x1ec09000, 0x1ec09fff] PGTABLE
[    0.013396] BRK [0x1ec0a000, 0x1ec0afff] PGTABLE
[    0.013462] RAMDISK: [mem 0x34eab000-0x3674cfff]
[    0.013473] ACPI: Early table checksum verification disabled
[    0.013480] ACPI: RSDP 0x00000000795A1000 000024 (v02 ALASKA)
[    0.013489] ACPI: XSDT 0x00000000795A1090 0000A4 (v01 INTEL  DE3815TY 01072009 AMI  00010013)
[    0.013502] ACPI: FACP 0x00000000795AC488 00010C (v05 INTEL  DE3815TY 01072009 AMI  00010013)
[    0.013514] ACPI BIOS Warning (bug): 32/64X length mismatch in FADT/Gpe0Block: 128/32 (20180810/tbfadt-569)
[    0.013523] ACPI: DSDT 0x00000000795A11C8 00B2C0 (v02 INTEL  DE3815TY 01072009 INTL 20120913)
[    0.013532] ACPI: FACS 0x000000007967DF80 000040
[    0.013540] ACPI: APIC 0x00000000795AC598 00005A (v03 INTEL  DE3815TY 01072009 AMI  00010013)
[    0.013548] ACPI: FPDT 0x00000000795AC5F8 000044 (v01 INTEL  DE3815TY 01072009 AMI  00010013)
[    0.013557] ACPI: FIDT 0x00000000795AC640 00009C (v01 INTEL  DE3815TY 01072009 AMI  00010013)
[    0.013565] ACPI: TCPA 0x00000000795AC6E0 000032 (v02 INTEL  DE3815TY 00000001 MSFT 01000013)
[    0.013574] ACPI: MCFG 0x00000000795AC718 00003C (v01 INTEL  DE3815TY 01072009 MSFT 00000097)
[    0.013583] ACPI: LPIT 0x00000000795AC758 000104 (v01 INTEL  DE3815TY 00000003 VLV2 0100000D)
[    0.013591] ACPI: HPET 0x00000000795AC860 000038 (v01 INTEL  DE3815TY 01072009 AMI. 00000005)
[    0.013599] ACPI: SSDT 0x00000000795AC898 000338 (v01 INTEL  DE3815TY 00003000 INTL 20061109)
[    0.013608] ACPI: SSDT 0x00000000795ACBD0 000433 (v01 INTEL  DE3815TY 00003001 INTL 20061109)
[    0.013617] ACPI: SSDT 0x00000000795AD008 000763 (v01 INTEL  DE3815TY 00003000 INTL 20061109)
[    0.013625] ACPI: SSDT 0x00000000795AD770 000290 (v01 INTEL  DE3815TY 00003000 INTL 20061109)
[    0.013634] ACPI: UEFI 0x00000000795ADA00 000042 (v01 INTEL  DE3815TY 00000000      00000000)
[    0.013643] ACPI: SSDT 0x00000000795ADA48 000530 (v01 INTEL  DE3815TY 00000001 INTL 20120913)
[    0.013651] ACPI: CSRT 0x00000000795ADF78 00014C (v00 INTEL  DE3815TY 00000005 INTL 20120624)
[    0.013660] ACPI: BGRT 0x00000000795AE0C8 000038 (v01 INTEL  DE3815TY 01072009 AMI  00010013)
[    0.013684] ACPI: Local APIC address 0xfee00000
[    0.013930] No NUMA configuration found
[    0.013933] Faking a node at [mem 0x0000000000000000-0x0000000079ffffff]
[    0.013944] NODE_DATA(0) allocated [mem 0x78df6000-0x78dfafff]
[    0.014013] Zone ranges:
[    0.014016]   DMA      [mem 0x0000000000001000-0x0000000000ffffff]
[    0.014020]   DMA32    [mem 0x0000000001000000-0x0000000079ffffff]
[    0.014023]   Normal   empty
[    0.014025]   Device   empty
[    0.014028] Movable zone start for each node
[    0.014030] Early memory node ranges
[    0.014032]   node   0: [mem 0x0000000000001000-0x000000000008efff]
[    0.014035]   node   0: [mem 0x0000000000090000-0x000000000009ffff]
[    0.014037]   node   0: [mem 0x0000000000100000-0x000000001effffff]
[    0.014039]   node   0: [mem 0x0000000020100000-0x000000007956dfff]
[    0.014042]   node   0: [mem 0x00000000799ed000-0x00000000799edfff]
[    0.014044]   node   0: [mem 0x0000000079a30000-0x0000000079ba5fff]
[    0.014046]   node   0: [mem 0x0000000079ff9000-0x0000000079ffffff]
[    0.015677] Zeroed struct page in unavailable ranges: 31350 pages
[    0.015682] Initmem setup node 0 [mem 0x0000000000001000-0x0000000079ffffff]
[    0.015688] On node 0 totalpages: 492938
[    0.015692]   DMA zone: 64 pages used for memmap
[    0.015694]   DMA zone: 39 pages reserved
[    0.015697]   DMA zone: 3998 pages, LIFO batch:0
[    0.015994]   DMA32 zone: 7744 pages used for memmap
[    0.015997]   DMA32 zone: 488940 pages, LIFO batch:63
[    0.051025] x86/hpet: Will disable the HPET for this platform because it's not reliable
[    0.051036] Reserving Intel graphics memory at [mem 0x7b000000-0x7effffff]
[    0.051228] ACPI: PM-Timer IO Port: 0x408
[    0.051233] ACPI: Local APIC address 0xfee00000
[    0.051248] ACPI: LAPIC_NMI (acpi_id[0x01] high dfl lint[0x4])
[    0.051250] ACPI: NMI not connected to LINT 1!
[    0.051267] IOAPIC[0]: apic_id 1, version 32, address 0xfec00000, GSI 0-86
[    0.051273] ACPI: INT_SRC_OVR (bus 0 bus_irq 0 global_irq 2 dfl dfl)
[    0.051277] ACPI: INT_SRC_OVR (bus 0 bus_irq 9 global_irq 9 high level)
[    0.051280] ACPI: IRQ0 used by override.
[    0.051284] ACPI: IRQ9 used by override.
[    0.051288] Using ACPI (MADT) for SMP configuration information
[    0.051293] ACPI: HPET id: 0x8086a201 base: 0xfed00000
[    0.051316] e820: update [mem 0x6d1ff000-0x6d298fff] usable ==> reserved
[    0.051345] smpboot: Allowing 1 CPUs, 0 hotplug CPUs
[    0.051423] PM: Registered nosave memory: [mem 0x00000000-0x00000fff]
[    0.051429] PM: Registered nosave memory: [mem 0x0008f000-0x0008ffff]
[    0.051435] PM: Registered nosave memory: [mem 0x000a0000-0x000fffff]
[    0.051441] PM: Registered nosave memory: [mem 0x1f000000-0x200fffff]
[    0.051446] PM: Registered nosave memory: [mem 0x6d1ff000-0x6d298fff]
[    0.051452] PM: Registered nosave memory: [mem 0x7956e000-0x7959dfff]
[    0.051455] PM: Registered nosave memory: [mem 0x7959e000-0x795aefff]
[    0.051457] PM: Registered nosave memory: [mem 0x795af000-0x796e0fff]
[    0.051459] PM: Registered nosave memory: [mem 0x796e1000-0x79990fff]
[    0.051461] PM: Registered nosave memory: [mem 0x79991000-0x799ecfff]
[    0.051467] PM: Registered nosave memory: [mem 0x799ee000-0x79a2ffff]
[    0.051473] PM: Registered nosave memory: [mem 0x79ba6000-0x79ff8fff]
[    0.051478] [mem 0x7f000000-0xdfffffff] available for PCI devices
[    0.051481] Booting paravirtualized kernel on bare hardware
[    0.051488] clocksource: refined-jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645519600211568 ns
[    0.359373] random: get_random_bytes called from start_kernel+0x93/0x52c with crng_init=0
[    0.359398] setup_percpu: NR_CPUS:512 nr_cpumask_bits:512 nr_cpu_ids:1 nr_node_ids:1
[    0.360229] percpu: Embedded 45 pages/cpu s144408 r8192 d31720 u2097152
[    0.360253] pcpu-alloc: s144408 r8192 d31720 u2097152 alloc=1*2097152
[    0.360256] pcpu-alloc: [0] 0
[    0.360322] Built 1 zonelists, mobility grouping on.  Total pages: 485091
[    0.360325] Policy zone: DMA32
[    0.360329] Kernel command line: BOOT_IMAGE=/boot/vmlinuz-4.19.0-9-amd64 root=UUID=90444874-f3ab-46ea-b694-83a33d984cac ro quiet
[    0.360478] Calgary: detecting Calgary via BIOS EBDA area
[    0.360482] Calgary: Unable to locate Rio Grande table in EBDA - bailing!
[    0.377788] Memory: 1617672K/1971752K available (10252K kernel code, 1241K rwdata, 3316K rodata, 1588K init, 2276K bss, 354080K reserved, 0K cma-reserved)
[    0.378125] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[    0.378142] Kernel/User page tables isolation: enabled
[    0.378281] ftrace: allocating 31879 entries in 125 pages
[    0.406330] rcu: Hierarchical RCU implementation.
[    0.406335] rcu:     RCU restricting CPUs from NR_CPUS=512 to nr_cpu_ids=1.
[    0.406338] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=1
[    0.416496] NR_IRQS: 33024, nr_irqs: 256, preallocated irqs: 16
[    0.416921] Console: colour dummy device 80x25
[    0.416930] console [tty0] enabled
[    0.416992] ACPI: Core revision 20180810
[    0.417281] APIC: Switch to symmetric I/O mode setup
[    0.418122] ..TIMER: vector=0x30 apic1=0 pin1=2 apic2=0 pin2=0
[    0.437288] clocksource: tsc-early: mask: 0xffffffffffffffff max_cycles: 0x1522c79555f, max_idle_ns: 440795265300 ns
[    0.437315] Calibrating delay loop (skipped), value calculated using timer frequency.. 2932.60 BogoMIPS (lpj=5865200)
[    0.437322] pid_max: default: 32768 minimum: 301
[    0.438874] Security Framework initialized
[    0.438879] Yama: disabled by default; enable with sysctl kernel.yama.*
[    0.438933] AppArmor: AppArmor initialized
[    0.439948] Dentry cache hash table entries: 262144 (order: 9, 2097152 bytes)
[    0.440489] Inode-cache hash table entries: 131072 (order: 8, 1048576 bytes)
[    0.440565] Mount-cache hash table entries: 4096 (order: 3, 32768 bytes)
[    0.440587] Mountpoint-cache hash table entries: 4096 (order: 3, 32768 bytes)
[    0.441125] ENERGY_PERF_BIAS: Set to 'normal', was 'performance'
[    0.441129] ENERGY_PERF_BIAS: View and update with x86_energy_perf_policy(8)
[    0.441165] process: using mwait in idle threads
[    0.441174] Last level iTLB entries: 4KB 48, 2MB 0, 4MB 0
[    0.441176] Last level dTLB entries: 4KB 128, 2MB 16, 4MB 16, 1GB 0
[    0.441180] Spectre V1 : Mitigation: usercopy/swapgs barriers and __user pointer sanitization
[    0.441183] Spectre V2 : Mitigation: Full generic retpoline
[    0.441185] Spectre V2 : Spectre v2 / SpectreRSB mitigation: Filling RSB on context switch
[    0.441237] MDS: Vulnerable: Clear CPU buffers attempted, no microcode
[    0.449856] Freeing SMP alternatives memory: 24K
[    0.483533] TSC deadline timer enabled
[    0.483539] smpboot: CPU0: Intel(R) Atom(TM) CPU  E3815  @ 1.46GHz (family: 0x6, model: 0x37, stepping: 0x3)
[    0.483931] Performance Events: PEBS fmt2+, 8-deep LBR, Silvermont events, 8-deep LBR, full-width counters, Intel PMU driver.
[    0.483958] ... version:                3
[    0.483960] ... bit width:              40
[    0.483961] ... generic registers:      2
[    0.483963] ... value mask:             000000ffffffffff
[    0.483965] ... max period:             0000007fffffffff
[    0.483966] ... fixed-purpose events:   3
[    0.483968] ... event mask:             0000000700000003
[    0.484093] rcu: Hierarchical SRCU implementation.
[    0.485045] random: crng done (trusting CPU's manufacturer)
[    0.485293] NMI watchdog: Enabled. Permanently consumes one hw-PMU counter.
[    0.485293] smp: Bringing up secondary CPUs ...
[    0.485293] smp: Brought up 1 node, 1 CPU
[    0.485293] smpboot: Max logical packages: 1
[    0.485293] smpboot: Total of 1 processors activated (2932.60 BogoMIPS)
[    0.485293] devtmpfs: initialized
[    0.485293] x86/mm: Memory block size: 128MB
[    0.485293] PM: Registering ACPI NVS region [mem 0x0008f000-0x0008ffff] (4096 bytes)
[    0.485293] PM: Registering ACPI NVS region [mem 0x795af000-0x796e0fff] (1253376 bytes)
[    0.485313] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.485329] futex hash table entries: 256 (order: 2, 16384 bytes)
[    0.485447] pinctrl core: initialized pinctrl subsystem
[    0.485909] NET: Registered protocol family 16
[    0.486141] audit: initializing netlink subsys (disabled)
[    0.486559] cpuidle: using governor ladder
[    0.486562] cpuidle: using governor menu
[    0.486641] ACPI FADT declares the system doesn't support PCIe ASPM, so disable it
[    0.486644] ACPI: bus type PCI registered
[    0.486648] acpiphp: ACPI Hot Plug PCI Controller Driver version: 0.5
[    0.486829] PCI: MMCONFIG for domain 0000 [bus 00-ff] at [mem 0xe0000000-0xefffffff] (base 0xe0000000)
[    0.486836] PCI: MMCONFIG at [mem 0xe0000000-0xefffffff] reserved in E820
[    0.486871] PCI: Using configuration type 1 for base access
[    0.489237] audit: type=2000 audit(1590936858.068:1): state=initialized audit_enabled=0 res=1
[    0.489562] HugeTLB registered 2.00 MiB page size, pre-allocated 0 pages
[    0.490300] ACPI: Added _OSI(Module Device)
[    0.490303] ACPI: Added _OSI(Processor Device)
[    0.490305] ACPI: Added _OSI(3.0 _SCP Extensions)
[    0.490307] ACPI: Added _OSI(Processor Aggregator Device)
[    0.490310] ACPI: Added _OSI(Linux-Dell-Video)
[    0.490312] ACPI: Added _OSI(Linux-Lenovo-NV-HDMI-Audio)
[    0.509373] ACPI: 6 ACPI AML tables successfully acquired and loaded
[    0.517452] ACPI: Interpreter enabled
[    0.517513] ACPI: (supports S0 S3 S4 S5)
[    0.517517] ACPI: Using IOAPIC for interrupt routing
[    0.517607] PCI: Using host bridge windows from ACPI; if necessary, use "pci=nocrs" and report a bug
[    0.518699] ACPI: Enabled 9 GPEs in block 00 to 3F
[    0.532114] ACPI: Power Resource [USBC] (on)
[    0.535045] ACPI: Power Resource [PLPE] (on)
[    0.535647] ACPI: Power Resource [PLPE] (on)
[    0.544144] ACPI: Power Resource [CLK0] (off)
[    0.544266] ACPI: Power Resource [CLK1] (off)
[    0.548722] ACPI: Power Resource [FN00] (off)
[    0.550180] ACPI: PCI Root Bridge [PCI0] (domain 0000 [bus 00-ff])
[    0.550193] acpi PNP0A08:00: _OSC: OS supports [ExtendedConfig ASPM ClockPM Segments MSI]
[    0.550962] acpi PNP0A08:00: _OSC: platform does not support [PCIeHotplug SHPCHotplug PME]
[    0.551482] acpi PNP0A08:00: _OSC: OS now controls [AER PCIeCapability LTR]
[    0.551486] acpi PNP0A08:00: FADT indicates ASPM is unsupported, using BIOS configuration
[    0.552702] PCI host bridge to bus 0000:00
[    0.552709] pci_bus 0000:00: root bus resource [io  0x0070-0x0077]
[    0.552713] pci_bus 0000:00: root bus resource [io  0x0000-0x006f window]
[    0.552717] pci_bus 0000:00: root bus resource [io  0x0078-0x0cf7 window]
[    0.552721] pci_bus 0000:00: root bus resource [io  0x0d00-0xffff window]
[    0.552724] pci_bus 0000:00: root bus resource [mem 0x000a0000-0x000bffff window]
[    0.552728] pci_bus 0000:00: root bus resource [mem 0x000c0000-0x000dffff window]
[    0.552731] pci_bus 0000:00: root bus resource [mem 0x000e0000-0x000fffff window]
[    0.552735] pci_bus 0000:00: root bus resource [mem 0x80000000-0xffffffff window]
[    0.552739] pci_bus 0000:00: root bus resource [bus 00-ff]
[    0.552756] pci 0000:00:00.0: [8086:0f00] type 00 class 0x060000
[    0.553099] pci 0000:00:02.0: [8086:0f31] type 00 class 0x030000
[    0.553120] pci 0000:00:02.0: reg 0x10: [mem 0xd0000000-0xd03fffff]
[    0.553134] pci 0000:00:02.0: reg 0x18: [mem 0xc0000000-0xcfffffff pref]
[    0.553147] pci 0000:00:02.0: reg 0x20: [io  0xe080-0xe087]
[    0.553174] pci 0000:00:02.0: BAR 2: assigned to efifb
[    0.553504] pci 0000:00:13.0: [8086:0f23] type 00 class 0x010601
[    0.553531] pci 0000:00:13.0: reg 0x10: [io  0xe070-0xe077]
[    0.553542] pci 0000:00:13.0: reg 0x14: [io  0xe060-0xe063]
[    0.553553] pci 0000:00:13.0: reg 0x18: [io  0xe050-0xe057]
[    0.553565] pci 0000:00:13.0: reg 0x1c: [io  0xe040-0xe043]
[    0.553576] pci 0000:00:13.0: reg 0x20: [io  0xe020-0xe03f]
[    0.553588] pci 0000:00:13.0: reg 0x24: [mem 0xd072e000-0xd072e7ff]
[    0.553647] pci 0000:00:13.0: PME# supported from D3hot
[    0.553944] pci 0000:00:14.0: [8086:0f35] type 00 class 0x0c0330
[    0.553972] pci 0000:00:14.0: reg 0x10: [mem 0xd0700000-0xd070ffff 64bit]
[    0.554046] pci 0000:00:14.0: PME# supported from D3hot D3cold
[    0.554331] pci 0000:00:17.0: [8086:0f50] type 00 class 0x080501
[    0.554358] pci 0000:00:17.0: reg 0x10: [mem 0xd072d000-0xd072dfff]
[    0.554371] pci 0000:00:17.0: reg 0x14: [mem 0xd072c000-0xd072cfff]
[    0.554457] pci 0000:00:17.0: PME# supported from D0 D3hot
[    0.554842] pci 0000:00:18.0: [8086:0f40] type 00 class 0x080102
[    0.554868] pci 0000:00:18.0: reg 0x10: [mem 0xd0718000-0xd071bfff]
[    0.554879] pci 0000:00:18.0: reg 0x14: [mem 0xd072b000-0xd072bfff]
[    0.555220] pci 0000:00:18.1: [8086:0f41] type 00 class 0x0c8000
[    0.555245] pci 0000:00:18.1: reg 0x10: [mem 0xd072a000-0xd072afff]
[    0.555255] pci 0000:00:18.1: reg 0x14: [mem 0xd0729000-0xd0729fff]
[    0.555593] pci 0000:00:18.2: [8086:0f42] type 00 class 0x0c8000
[    0.555618] pci 0000:00:18.2: reg 0x10: [mem 0xd0728000-0xd0728fff]
[    0.555629] pci 0000:00:18.2: reg 0x14: [mem 0xd0727000-0xd0727fff]
[    0.555982] pci 0000:00:1a.0: [8086:0f18] type 00 class 0x108000
[    0.556018] pci 0000:00:1a.0: reg 0x10: [mem 0xd0500000-0xd05fffff]
[    0.556034] pci 0000:00:1a.0: reg 0x14: [mem 0xd0400000-0xd04fffff]
[    0.556155] pci 0000:00:1a.0: PME# supported from D0 D3hot
[    0.556512] pci 0000:00:1c.0: [8086:0f48] type 01 class 0x060400
[    0.556604] pci 0000:00:1c.0: PME# supported from D0 D3hot D3cold
[    0.556904] pci 0000:00:1c.1: [8086:0f4a] type 01 class 0x060400
[    0.556993] pci 0000:00:1c.1: PME# supported from D0 D3hot D3cold
[    0.557293] pci 0000:00:1c.2: [8086:0f4c] type 01 class 0x060400
[    0.557385] pci 0000:00:1c.2: PME# supported from D0 D3hot D3cold
[    0.557693] pci 0000:00:1e.0: [8086:0f06] type 00 class 0x080102
[    0.557719] pci 0000:00:1e.0: reg 0x10: [mem 0xd0710000-0xd0713fff]
[    0.557730] pci 0000:00:1e.0: reg 0x14: [mem 0xd0725000-0xd0725fff]
[    0.558075] pci 0000:00:1e.1: [8086:0f08] type 00 class 0x0c8000
[    0.558100] pci 0000:00:1e.1: reg 0x10: [mem 0xd0724000-0xd0724fff]
[    0.558110] pci 0000:00:1e.1: reg 0x14: [mem 0xd0723000-0xd0723fff]
[    0.558454] pci 0000:00:1e.2: [8086:0f09] type 00 class 0x0c8000
[    0.558479] pci 0000:00:1e.2: reg 0x10: [mem 0xd0722000-0xd0722fff]
[    0.558489] pci 0000:00:1e.2: reg 0x14: [mem 0xd0721000-0xd0721fff]
[    0.558828] pci 0000:00:1e.3: [8086:0f0a] type 00 class 0x078000
[    0.558853] pci 0000:00:1e.3: reg 0x10: [mem 0xd0720000-0xd0720fff]
[    0.558863] pci 0000:00:1e.3: reg 0x14: [mem 0xd071f000-0xd071ffff]
[    0.559202] pci 0000:00:1e.4: [8086:0f0c] type 00 class 0x078000
[    0.559227] pci 0000:00:1e.4: reg 0x10: [mem 0xd071e000-0xd071efff]
[    0.559237] pci 0000:00:1e.4: reg 0x14: [mem 0xd071d000-0xd071dfff]
[    0.559582] pci 0000:00:1f.0: [8086:0f1c] type 00 class 0x060100
[    0.559948] pci 0000:00:1f.3: [8086:0f12] type 00 class 0x0c0500
[    0.559996] pci 0000:00:1f.3: reg 0x10: [mem 0xd071c000-0xd071c01f]
[    0.560071] pci 0000:00:1f.3: reg 0x20: [io  0xe000-0xe01f]
[    0.560570] pci 0000:00:1c.0: PCI bridge to [bus 01]
[    0.560697] pci 0000:00:1c.1: PCI bridge to [bus 02]
[    0.560862] pci 0000:03:00.0: [10ec:8168] type 00 class 0x020000
[    0.560899] pci 0000:03:00.0: reg 0x10: [io  0xd000-0xd0ff]
[    0.560931] pci 0000:03:00.0: reg 0x18: [mem 0xd0604000-0xd0604fff 64bit]
[    0.560952] pci 0000:03:00.0: reg 0x20: [mem 0xd0600000-0xd0603fff 64bit pref]
[    0.561068] pci 0000:03:00.0: supports D1 D2
[    0.561072] pci 0000:03:00.0: PME# supported from D0 D1 D2 D3hot D3cold
[    0.561308] pci 0000:00:1c.2: PCI bridge to [bus 03]
[    0.561314] pci 0000:00:1c.2:   bridge window [io  0xd000-0xdfff]
[    0.561320] pci 0000:00:1c.2:   bridge window [mem 0xd0600000-0xd06fffff]
[    0.562527] ACPI: PCI Interrupt Link [LNKA] (IRQs 3 4 5 6 10 *11 12 14 15)
[    0.562709] ACPI: PCI Interrupt Link [LNKB] (IRQs *3 4 5 6 10 11 12 14 15)
[    0.562887] ACPI: PCI Interrupt Link [LNKC] (IRQs 3 4 5 6 10 *11 12 14 15)
[    0.563064] ACPI: PCI Interrupt Link [LNKD] (IRQs 3 4 5 6 *10 11 12 14 15)
[    0.563241] ACPI: PCI Interrupt Link [LNKE] (IRQs 3 4 5 6 10 11 12 14 *15)
[    0.563416] ACPI: PCI Interrupt Link [LNKF] (IRQs 3 *4 5 6 10 11 12 14 15)
[    0.563594] ACPI: PCI Interrupt Link [LNKG] (IRQs 3 4 5 6 10 11 12 *14 15)
[    0.563771] ACPI: PCI Interrupt Link [LNKH] (IRQs 3 4 *5 6 10 11 12 14 15)
[    0.566488] byt_gpio INT33FC:02: GPIO interrupt error, pins misconfigured. INT_STAT0: 0x00008000
[    0.575419] pci 0000:00:02.0: vgaarb: setting as boot VGA device
[    0.575425] pci 0000:00:02.0: vgaarb: VGA device added: decodes=io+mem,owns=io+mem,locks=none
[    0.575473] pci 0000:00:02.0: vgaarb: bridge control possible
[    0.575488] vgaarb: loaded
[    0.576136] pps_core: LinuxPPS API ver. 1 registered
[    0.576146] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti
[    0.576186] PTP clock support registered
[    0.576295] EDAC MC: Ver: 3.0.0
[    0.577386] Registered efivars operations
[    0.578593] PCI: Using ACPI for IRQ routing
[    0.602151] PCI: pci_cache_line_size set to 64 bytes
[    0.602498] e820: reserve RAM buffer [mem 0x0008f000-0x0008ffff]
[    0.602509] e820: reserve RAM buffer [mem 0x1f000000-0x1fffffff]
[    0.602517] e820: reserve RAM buffer [mem 0x6d1ff000-0x6fffffff]
[    0.602526] e820: reserve RAM buffer [mem 0x7956e000-0x7bffffff]
[    0.602541] e820: reserve RAM buffer [mem 0x799ee000-0x7bffffff]
[    0.602550] e820: reserve RAM buffer [mem 0x79ba6000-0x7bffffff]
[    0.602564] e820: reserve RAM buffer [mem 0x7a000000-0x7bffffff]
[    0.604428] clocksource: Switched to clocksource tsc-early
[    0.740820] VFS: Disk quotas dquot_6.6.0
[    0.740987] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[    0.742380] AppArmor: AppArmor Filesystem Enabled
[    0.742606] pnp: PnP ACPI init
[    0.743212] pnp 00:00: Plug and Play ACPI device, IDs PNP0b00 (active)
[    0.744666] system 00:01: [io  0x0680-0x069f] has been reserved
[    0.744684] system 00:01: [io  0x0400-0x047f] has been reserved
[    0.744701] system 00:01: [io  0x0500-0x05fe] has been reserved
[    0.744717] system 00:01: [io  0x0600-0x061f] has been reserved
[    0.744774] system 00:01: Plug and Play ACPI device, IDs PNP0c02 (active)
[    0.747102] system 00:02: [io  0x0a10-0x0a3f] has been reserved
[    0.747126] system 00:02: [io  0x0a40-0x0a4f] has been reserved
[    0.747142] system 00:02: [io  0x0a00-0x0a0f] has been reserved
[    0.747204] system 00:02: Plug and Play ACPI device, IDs PNP0c02 (active)
[    0.750313] system 00:03: [mem 0xe0000000-0xefffffff] has been reserved
[    0.750337] system 00:03: [mem 0xfed01000-0xfed01fff] has been reserved
[    0.750354] system 00:03: [mem 0xfed03000-0xfed03fff] has been reserved
[    0.750371] system 00:03: [mem 0xfed04000-0xfed04fff] has been reserved
[    0.750387] system 00:03: [mem 0xfed08000-0xfed08fff] has been reserved
[    0.750403] system 00:03: [mem 0xfed1c000-0xfed1cfff] has been reserved
[    0.750420] system 00:03: [mem 0xfee00000-0xfeefffff] could not be reserved
[    0.750437] system 00:03: [mem 0xfef00000-0xfeffffff] has been reserved
[    0.750492] system 00:03: Plug and Play ACPI device, IDs PNP0c02 (active)
[    0.759243] pnp 00:04: Plug and Play ACPI device, IDs PNP0c31 (active)
[    0.759347] pnp: PnP ACPI: found 5 devices
[    0.783786] clocksource: acpi_pm: mask: 0xffffff max_cycles: 0xffffff, max_idle_ns: 2085701024 ns
[    0.783902] pci 0000:00:1c.0: bridge window [io  0x1000-0x0fff] to [bus 01] add_size 1000
[    0.783927] pci 0000:00:1c.0: bridge window [mem 0x00100000-0x000fffff 64bit pref] to [bus 01] add_size 200000 add_align 100000
[    0.783945] pci 0000:00:1c.0: bridge window [mem 0x00100000-0x000fffff] to [bus 01] add_size 200000 add_align 100000
[    0.783979] pci 0000:00:1c.1: bridge window [io  0x1000-0x0fff] to [bus 02] add_size 1000
[    0.783990] pci 0000:00:1c.1: bridge window [mem 0x00100000-0x000fffff 64bit pref] to [bus 02] add_size 200000 add_align 100000
[    0.784007] pci 0000:00:1c.1: bridge window [mem 0x00100000-0x000fffff] to [bus 02] add_size 200000 add_align 100000
[    0.784055] pci 0000:00:1c.2: bridge window [mem 0x00100000-0x000fffff 64bit pref] to [bus 03] add_size 200000 add_align 100000
[    0.784159] pci 0000:00:1c.0: BAR 14: assigned [mem 0x80000000-0x801fffff]
[    0.784223] pci 0000:00:1c.0: BAR 15: assigned [mem 0x80200000-0x803fffff 64bit pref]
[    0.784254] pci 0000:00:1c.1: BAR 14: assigned [mem 0x80400000-0x805fffff]
[    0.784310] pci 0000:00:1c.1: BAR 15: assigned [mem 0x80600000-0x807fffff 64bit pref]
[    0.784365] pci 0000:00:1c.2: BAR 15: assigned [mem 0x80800000-0x809fffff 64bit pref]
[    0.784391] pci 0000:00:1c.0: BAR 13: assigned [io  0x1000-0x1fff]
[    0.784415] pci 0000:00:1c.1: BAR 13: assigned [io  0x2000-0x2fff]
[    0.784441] pci 0000:00:1c.0: PCI bridge to [bus 01]
[    0.784452] pci 0000:00:1c.0:   bridge window [io  0x1000-0x1fff]
[    0.784476] pci 0000:00:1c.0:   bridge window [mem 0x80000000-0x801fffff]
[    0.784493] pci 0000:00:1c.0:   bridge window [mem 0x80200000-0x803fffff 64bit pref]
[    0.784517] pci 0000:00:1c.1: PCI bridge to [bus 02]
[    0.784533] pci 0000:00:1c.1:   bridge window [io  0x2000-0x2fff]
[    0.784557] pci 0000:00:1c.1:   bridge window [mem 0x80400000-0x805fffff]
[    0.784580] pci 0000:00:1c.1:   bridge window [mem 0x80600000-0x807fffff 64bit pref]
[    0.784605] pci 0000:00:1c.2: PCI bridge to [bus 03]
[    0.784620] pci 0000:00:1c.2:   bridge window [io  0xd000-0xdfff]
[    0.784643] pci 0000:00:1c.2:   bridge window [mem 0xd0600000-0xd06fffff]
[    0.784660] pci 0000:00:1c.2:   bridge window [mem 0x80800000-0x809fffff 64bit pref]
[    0.784687] pci_bus 0000:00: resource 4 [io  0x0070-0x0077]
[    0.784696] pci_bus 0000:00: resource 5 [io  0x0000-0x006f window]
[    0.784712] pci_bus 0000:00: resource 6 [io  0x0078-0x0cf7 window]
[    0.784727] pci_bus 0000:00: resource 7 [io  0x0d00-0xffff window]
[    0.784736] pci_bus 0000:00: resource 8 [mem 0x000a0000-0x000bffff window]
[    0.784746] pci_bus 0000:00: resource 9 [mem 0x000c0000-0x000dffff window]
[    0.784761] pci_bus 0000:00: resource 10 [mem 0x000e0000-0x000fffff window]
[    0.784770] pci_bus 0000:00: resource 11 [mem 0x80000000-0xffffffff window]
[    0.784781] pci_bus 0000:01: resource 0 [io  0x1000-0x1fff]
[    0.784790] pci_bus 0000:01: resource 1 [mem 0x80000000-0x801fffff]
[    0.784805] pci_bus 0000:01: resource 2 [mem 0x80200000-0x803fffff 64bit pref]
[    0.784821] pci_bus 0000:02: resource 0 [io  0x2000-0x2fff]
[    0.784830] pci_bus 0000:02: resource 1 [mem 0x80400000-0x805fffff]
[    0.784840] pci_bus 0000:02: resource 2 [mem 0x80600000-0x807fffff 64bit pref]
[    0.784856] pci_bus 0000:03: resource 0 [io  0xd000-0xdfff]
[    0.784871] pci_bus 0000:03: resource 1 [mem 0xd0600000-0xd06fffff]
[    0.784880] pci_bus 0000:03: resource 2 [mem 0x80800000-0x809fffff 64bit pref]
[    0.785945] NET: Registered protocol family 2
[    0.787317] tcp_listen_portaddr_hash hash table entries: 1024 (order: 2, 16384 bytes)
[    0.787438] TCP established hash table entries: 16384 (order: 5, 131072 bytes)
[    0.787759] TCP bind hash table entries: 16384 (order: 6, 262144 bytes)
[    0.788128] TCP: Hash tables configured (established 16384 bind 16384)
[    0.788520] UDP hash table entries: 1024 (order: 3, 32768 bytes)
[    0.788631] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes)
[    0.789240] NET: Registered protocol family 1
[    0.789411] NET: Registered protocol family 44
[    0.789506] pci 0000:00:02.0: Video device with shadowed ROM at [mem 0x000c0000-0x000dffff]
[    0.791539] PCI: CLS 64 bytes, default 64
[    0.792058] Unpacking initramfs...
[    5.753984] Freeing initrd memory: 25224K
[    5.754460] clocksource: tsc: mask: 0xffffffffffffffff max_cycles: 0x1522c79555f, max_idle_ns: 440795265300 ns
[    5.754560] clocksource: Switched to clocksource tsc
[    5.763070] Initialise system trusted keyrings
[    5.763191] Key type blacklist registered
[    5.763754] workingset: timestamp_bits=40 max_order=19 bucket_order=0
[    5.791022] zbud: loaded
[    8.107460] Key type asymmetric registered
[    8.107492] Asymmetric key parser 'x509' registered
[    8.107664] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 247)
[    8.108075] io scheduler noop registered
[    8.108085] io scheduler deadline registered
[    8.108688] io scheduler cfq registered (default)
[    8.108710] io scheduler mq-deadline registered
[    8.115673] shpchp: Standard Hot Plug PCI Controller Driver version: 0.4
[    8.115948] efifb: probing for efifb
[    8.116122] efifb: framebuffer at 0xc0000000, using 5120k, total 5120k
[    8.116132] efifb: mode is 1280x1024x32, linelength=5120, pages=1
[    8.116139] efifb: scrolling: redraw
[    8.116143] efifb: Truecolor: size=8:8:8:8, shift=24:16:8:0
[    8.169996] Console: switching to colour frame buffer device 160x64
[    8.222073] fb0: EFI VGA frame buffer device
[    8.222308] intel_idle: MWAIT substates: 0x3000020
[    8.222324] intel_idle: v0.4.1 model 0x37
[    8.222915] intel_idle: lapic_timer_reliable_states 0xffffffff
[    8.239901] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled
[    8.261188] serial8250: ttyS0 at I/O 0x3f8 (irq = 4, base_baud = 115200) is a 16550A
[    8.266961] hpet: number irqs doesn't agree with number of timers
[    8.267408] Linux agpgart interface v0.103
[    8.268280] AMD IOMMUv2 driver by Joerg Roedel
[    8.268294] AMD IOMMUv2 functionality not available on this system
[    8.270202] i8042: PNP: No PS/2 controller found.
[    8.271108] mousedev: PS/2 mouse device common for all mice
[    8.271565] rtc_cmos 00:00: RTC can wake from S4
[    8.272427] rtc_cmos 00:00: registered as rtc0
[    8.272703] rtc_cmos 00:00: alarms up to one month, y3k, 242 bytes nvram
[    8.272892] intel_pstate: Intel P-state driver initializing
[    8.275678] ledtrig-cpu: registered to indicate activity on CPUs
[    8.297236] NET: Registered protocol family 10
[    8.550834] Segment Routing with IPv6
[    8.551150] mip6: Mobile IPv6
[    8.551169] NET: Registered protocol family 17
[    8.551632] mpls_gso: MPLS GSO support
[    8.552622] mce: Using 6 MCE banks
[    8.553157] microcode: sig=0x30673, pf=0x1, revision=0x321
[    8.553944] microcode: Microcode Update Driver: v2.2.
[    8.554105] sched_clock: Marking stable (8552867937, 441125)->(8559082729, -5773667)
[    8.556176] registered taskstats version 1
[    8.556185] Loading compiled-in X.509 certificates
[    9.088026] Loaded X.509 cert 'Debian Secure Boot CA: 6ccece7e4c6c0d1f6149f3dd27dfcc5cbb419ea1'
[    9.088302] Loaded X.509 cert 'Debian Secure Boot Signer: 00a7468def'
[    9.089919] Loaded UEFI:db cert 'Microsoft Windows Production PCA 2011: a92902398e16c49778cd90f99e4f9ae17c55af53' linked to secondary sys keyring
[    9.090261] Loaded UEFI:db cert 'Microsoft Corporation UEFI CA 2011: 13adbf4309bd82709c8cd54f316ed522988a1bd4' linked to secondary sys keyring
[    9.091072] zswap: loaded using pool lzo/zbud
[    9.091672] AppArmor: AppArmor sha1 policy hashing enabled
[    9.098499] rtc_cmos 00:00: setting system clock to 2020-05-31 14:54:26 UTC (1590936866)
[    9.164152] Freeing unused kernel image memory: 1588K
[    9.169457] Write protecting the kernel read-only data: 16384k
[    9.176106] Freeing unused kernel image memory: 2028K
[    9.178539] Freeing unused kernel image memory: 780K
[    9.319964] x86/mm: Checked W+X mappings: passed, no W+X pages found.
[    9.320678] x86/mm: Checking user space page tables
[    9.460244] x86/mm: Checked W+X mappings: passed, no W+X pages found.
[    9.460268] Run /init as init process
[   12.624922] hidraw: raw HID events driver (C) Jiri Kosina
[   13.436911] thermal LNXTHERM:00: registered as thermal_zone0
[   13.436928] ACPI: Thermal Zone [TZ01] (27 C)
[   13.751581] i2c-designware-pci 0000:00:18.1: enabling device (0000 -> 0002)
[   14.025968] i2c-designware-pci 0000:00:18.2: enabling device (0000 -> 0002)
[   14.262926] i801_smbus 0000:00:1f.3: SMBus using PCI interrupt
[   14.607625] sdhci: Secure Digital Host Controller Interface driver
[   14.607641] sdhci: Copyright(c) Pierre Ossman
[   14.656074] SCSI subsystem initialized
[   14.783321] r8169 0000:03:00.0: can't disable ASPM; OS doesn't have ASPM control
[   14.966818] sdhci-pci 0000:00:17.0: SDHCI controller found [8086:0f50] (rev c)
[   14.971072] ACPI: bus type USB registered
[   14.971490] usbcore: registered new interface driver usbfs
[   14.971673] usbcore: registered new interface driver hub
[   14.973005] mmc0: SDHCI controller on PCI [0000:00:17.0] using ADMA
[   14.981722] usbcore: registered new device driver usb
[   15.072425] cryptd: max_cpu_qlen set to 1000
[   15.099335] mmc0: new DDR MMC card at address 0001
[   15.290785] libphy: r8169: probed
[   15.292905] r8169 0000:03:00.0 eth0: RTL8168g/8111g, c0:3f:d5:6b:ee:0d, XID 4c000800, IRQ 87
[   15.292930] r8169 0000:03:00.0 eth0: jumbo features [frames: 9200 bytes, tx checksumming: ko]
[   15.598222] SSE version of gcm_enc/dec engaged.
[   15.745852] libata version 3.00 loaded.
[   16.001006] xhci_hcd 0000:00:14.0: xHCI Host Controller
[   16.001116] xhci_hcd 0000:00:14.0: new USB bus registered, assigned bus number 1
[   16.005818] xhci_hcd 0000:00:14.0: hcc params 0x200077c1 hci version 0x100 quirks 0x0000000000009810
[   16.005867] xhci_hcd 0000:00:14.0: cache line size of 64 is not supported
[   16.013935] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 4.19
[   16.013960] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[   16.013976] usb usb1: Product: xHCI Host Controller
[   16.013986] usb usb1: Manufacturer: Linux 4.19.0-9-amd64 xhci-hcd
[   16.014002] usb usb1: SerialNumber: 0000:00:14.0
[   16.022006] hub 1-0:1.0: USB hub found
[   16.022161] hub 1-0:1.0: 6 ports detected
[   16.047402] ahci 0000:00:13.0: version 3.0
[   16.063894] ahci 0000:00:13.0: controller can't do DEVSLP, turning off
[   16.064498] ahci 0000:00:13.0: AHCI 0001.0300 32 slots 2 ports 3 Gbps 0x0 impl SATA mode
[   16.064518] ahci 0000:00:13.0: flags: 64bit ncq pm led clo pio slum part deso
[   16.066979] xhci_hcd 0000:00:14.0: xHCI Host Controller
[   16.067035] xhci_hcd 0000:00:14.0: new USB bus registered, assigned bus number 2
[   16.067078] xhci_hcd 0000:00:14.0: Host supports USB 3.0 SuperSpeed
[   16.070006] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 4.19
[   16.070030] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[   16.070040] usb usb2: Product: xHCI Host Controller
[   16.070063] usb usb2: Manufacturer: Linux 4.19.0-9-amd64 xhci-hcd
[   16.070079] usb usb2: SerialNumber: 0000:00:14.0
[   16.078048] hub 2-0:1.0: USB hub found
[   16.084484] hub 2-0:1.0: 1 port detected
[   16.099383] scsi host0: ahci
[   16.106016] scsi host1: ahci
[   16.107324] ata1: DUMMY
[   16.107341] ata2: DUMMY
[   16.401416] usb 1-4: new high-speed USB device number 2 using xhci_hcd
[   16.550990] usb 1-4: New USB device found, idVendor=05e3, idProduct=0610, bcdDevice=32.98
[   16.551009] usb 1-4: New USB device strings: Mfr=0, Product=1, SerialNumber=0
[   16.551026] usb 1-4: Product: USB2.0 Hub
[   16.553822] hub 1-4:1.0: USB hub found
[   16.556440] hub 1-4:1.0: 4 ports detected
[   17.196249] r8169 0000:03:00.0 enp3s0: renamed from eth0
[   17.240047] mmcblk0: mmc0:0001 004G90 3.69 GiB
[   17.258777] mmcblk0boot0: mmc0:0001 004G90 partition 1 2.00 MiB
[   17.280120] mmcblk0boot1: mmc0:0001 004G90 partition 2 2.00 MiB
[   17.281687] mmcblk0rpmb: mmc0:0001 004G90 partition 3 512 KiB, chardev (245:0)
[   17.319027]  mmcblk0: p1 p2
[   19.970855] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
[   21.427350] systemd[1]: Inserted module 'autofs4'
[   21.720538] efivars: duplicate variable: Events-b452fd8a-c9ca-4764-977e-59d839dd861b
[   21.744375] systemd[1]: systemd 241 running in system mode. (+PAM +AUDIT +SELINUX +IMA +APPARMOR +SMACK +SYSVINIT +UTMP +LIBCRYPTSETUP +GCRYPT +GNUTLS +ACL +XZ +LZ4 +SECCOMP +BLKID +ELFUTILS +KMOD -IDN2 +IDN -PCRE2 default-hierarchy=hybrid)
[   21.766006] systemd[1]: Detected architecture x86-64.
[   21.806885] systemd[1]: Set hostname to .
[   26.271680] systemd[1]: Listening on initctl Compatibility Named Pipe.
[   26.286605] systemd[1]: Created slice User and Session Slice.
[   26.291529] systemd[1]: Listening on Journal Audit Socket.
[   26.295038] systemd[1]: Listening on fsck to fsckd communication Socket.
[   26.295697] systemd[1]: Reached target Swap.
[   26.308336] systemd[1]: Created slice system-getty.slice.
[   26.312558] systemd[1]: Listening on Journal Socket.
[   26.843586] systemd[1]: Mounting Huge Pages File System...
[   26.874045] systemd[1]: Started Forward Password Requests to Wall Directory Watch.
[   26.903010] systemd[1]: Set up automount Arbitrary Executable File Formats File System Automount Point.
[   26.924712] systemd[1]: Condition check resulted in Set Up Additional Binary Formats being skipped.
[   26.936488] systemd[1]: Listening on Syslog Socket.
[   26.953566] systemd[1]: Reached target Remote File Systems.
[   26.973701] systemd[1]: Listening on Journal Socket (/dev/log).
[   27.121459] systemd[1]: Starting Journal Service...
[   27.147079] systemd[1]: Listening on udev Control Socket.
[   27.256976] systemd[1]: Starting udev Coldplug all Devices...
[   28.398955] EXT4-fs (mmcblk0p2): re-mounted. Opts: errors=remount-ro
[   32.198664] systemd[1]: Started Create Static Device Nodes in /dev.
[   32.297111] systemd[1]: Starting udev Kernel Device Manager...
[   33.716071] systemd[1]: Started udev Kernel Device Manager.
[   37.933557] input: Power Button as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/input/input0
[   37.933742] ACPI: Power Button [PWRB]
[   37.934637] input: Sleep Button as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0E:00/input/input1
[   37.934801] ACPI: Sleep Button [SLPB]
[   37.935762] input: Power Button as /devices/LNXSYSTM:00/LNXPWRBN:00/input/input2
[   37.951919] ACPI: Power Button [PWRF]
[   39.422157] systemd[1]: Started udev Coldplug all Devices.
[   39.677262] systemd[1]: Starting Helper to synchronize boot up for ifupdown...
[   40.117536] alg: No test for fips(ansi_cprng) (fips_ansi_cprng)
[   40.241843] systemd[1]: Started Helper to synchronize boot up for ifupdown.
[   41.859945] systemd[1]: Started Journal Service.
[   43.125678] tpm_tis 00:04: 1.2 TPM (device-id 0x0, rev-id 78)
[   44.617243] iTCO_vendor_support: vendor-support=0
[   44.791329] iTCO_wdt: Intel TCO WatchDog Timer Driver v1.11
[   44.791836] iTCO_wdt: Found a Bay Trail SoC TCO device (Version=3, TCOBASE=0x0460)
[   44.826438] iTCO_wdt: initialized. heartbeat=30 sec (nowayout=0)
[   45.148562] EFI Variables Facility v0.08 2004-May-17
[   45.185991] efivars: duplicate variable: Events-b452fd8a-c9ca-4764-977e-59d839dd861b
[   45.239633] input: PC Speaker as /devices/platform/pcspkr/input/input3
[   45.368120] pstore: Using compression: deflate
[   45.368190] pstore: Registered efi as persistent store backend
[   45.410911] Bluetooth: Core ver 2.22
[   45.411131] NET: Registered protocol family 31
[   45.411141] Bluetooth: HCI device and connection manager initialized
[   45.411180] Bluetooth: HCI socket layer initialized
[   45.411235] Bluetooth: L2CAP socket layer initialized
[   45.411345] Bluetooth: SCO socket layer initialized
[   47.241226] Bluetooth: HCI UART driver ver 2.3
[   47.241250] Bluetooth: HCI UART protocol H4 registered
[   47.241265] Bluetooth: HCI UART protocol BCSP registered
[   47.273805] Bluetooth: HCI UART protocol LL registered
[   47.273828] Bluetooth: HCI UART protocol ATH3K registered
[   47.274066] Bluetooth: HCI UART protocol Three-wire (H5) registered
[   47.274442] Bluetooth: HCI UART protocol Intel registered
[   47.275009] Bluetooth: HCI UART protocol Broadcom registered
[   47.275239] Bluetooth: HCI UART protocol QCA registered
[   47.275254] Bluetooth: HCI UART protocol AG6XX registered
[   47.275262] Bluetooth: HCI UART protocol Marvell registered
[   54.059767] systemd-journald[215]: Received request to flush runtime journal from PID 1
[   54.114475] checking generic (c0000000 500000) vs hw (c0000000 10000000)
[   54.114499] fb: switching to inteldrmfb from EFI VGA
[   54.114952] Console: switching to colour dummy device 80x25
[   54.126051] [drm] Replacing VGA console driver
[   54.127156] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013).
[   54.127165] [drm] Driver supports precise vblank timestamp query.
[   54.158427] i915 0000:00:02.0: vgaarb: changed VGA decodes: olddecodes=io+mem,decodes=io+mem:owns=io+mem
[   54.247006] [drm] failed to retrieve link info, disabling eDP
[   54.449584] [drm] Initialized i915 1.6.0 20180719 for 0000:00:02.0 on minor 0
[   54.486870] ACPI: Video Device [GFX0] (multi-head: yes  rom: no  post: no)
[   54.509711] input: Video Bus as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:00/input/input4
[   54.516307] [drm] HDaudio controller not detected, using LPE audio instead
[   54.797596] [drm] Cannot find any crtc or sizes
[   55.289956] [drm] Cannot find any crtc or sizes
[   55.824862] input: Intel HDMI/DP LPE Audio HDMI/DP,pcm=0 as /devices/pci0000:00/0000:00:02.0/hdmi-lpe-audio/sound/card0/input5
[   55.832388] input: Intel HDMI/DP LPE Audio HDMI/DP,pcm=1 as /devices/pci0000:00/0000:00:02.0/hdmi-lpe-audio/sound/card0/input6
[   56.149652] [drm] Cannot find any crtc or sizes
[   58.847727] audit: type=1400 audit(1590936916.243:2): apparmor="STATUS" operation="profile_load" profile="unconfined" name="nvidia_modprobe" pid=340 comm="apparmor_parser"
[   58.847790] audit: type=1400 audit(1590936916.243:3): apparmor="STATUS" operation="profile_load" profile="unconfined" name="nvidia_modprobe//kmod" pid=340 comm="apparmor_parser"
[   59.022643] audit: type=1400 audit(1590936916.419:4): apparmor="STATUS" operation="profile_load" profile="unconfined" name="/usr/bin/man" pid=341 comm="apparmor_parser"
[   59.022708] audit: type=1400 audit(1590936916.419:5): apparmor="STATUS" operation="profile_load" profile="unconfined" name="man_filter" pid=341 comm="apparmor_parser"
[   59.022757] audit: type=1400 audit(1590936916.419:6): apparmor="STATUS" operation="profile_load" profile="unconfined" name="man_groff" pid=341 comm="apparmor_parser"
[   61.167614] r8169 0000:03:00.0: firmware: direct-loading firmware rtl_nic/rtl8168g-2.fw
[   61.181893] Generic PHY r8169-300:00: attached PHY driver [Generic PHY] (mii_bus:phy_addr=r8169-300:00, irq=IGNORE)
[   61.348750] r8169 0000:03:00.0 enp3s0: Link is Down
[   61.349107] IPv6: ADDRCONF(NETDEV_UP): enp3s0: link is not ready
[   62.934905] r8169 0000:03:00.0 enp3s0: Link is Up - 100Mbps/Full - flow control rx/tx
[   62.934984] IPv6: ADDRCONF(NETDEV_CHANGE): enp3s0: link becomes ready



发表评论

电子邮件地址不会被公开。 必填项已用*标注
